Lift kit 40mm Sprinter Air FW 2019-

Sprinter 2018-22 air suspension lift kit 40mm SDK

Spacer rings are installed on the chassis using a so-called suspension distance kit (SDK). Spacer rings are mounted on the front axle below the chassis dome bearings. On the rear axle, either spacer blocks are used to raise the suspension or extended dampers are used to achieve the elevation. *

The main advantage is the gain in more real ground clearance and the possibility of installing larger tires. As a rule, you don't get more travel. Our components are designed in such a way that changes to the chassis geometry result in the least possible wear on drive components. Therefore, extreme elevations are not possible with this method.

*PLEASE NOTE: Since the lift kits vary depending on the different models, we ask you to pay attention to details in the respective item description and, if necessary, to contact us.

Suitable for model	Sprinter (910 | 2018 -22) air suspension
Permit	TÜV parts certificate
EC type approval number
Lift type	Suspension Distance Kit (SDK)
Altitude change	40mm on VA/HA
Assembly time	approx. 18h including track setting
Notice	only for air suspension

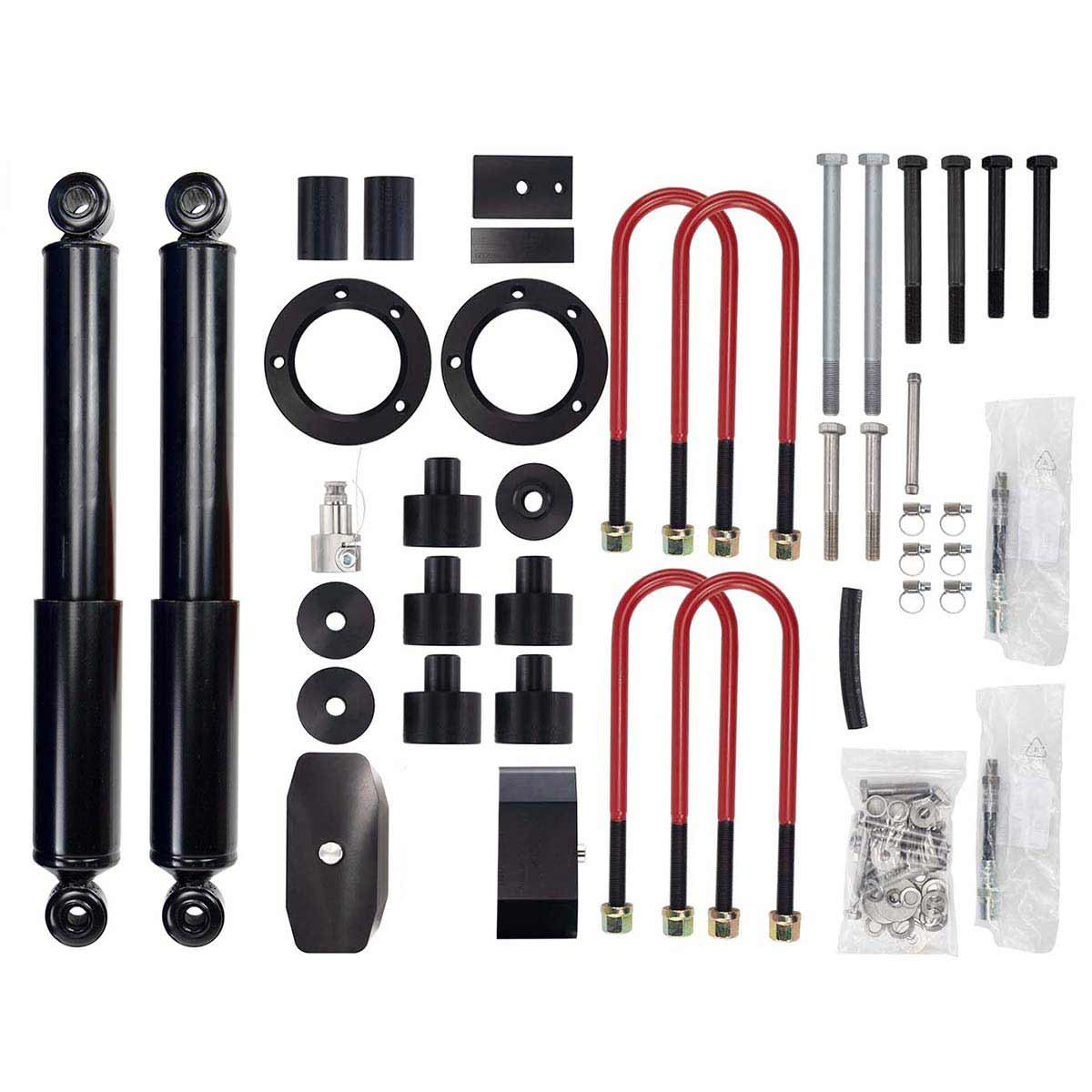

scope of delivery	Springs, spacers and blocks, all parts for modifications to the drive and steering, TÜV report

Spacer rings are installed on the chassis using a so-called suspension distance kit (SDK). Spacer rings are mounted on the front axle below the chassis dome bearings. On the rear axle, either spacer blocks are used to raise the suspension or extended dampers are used to achieve the elevation. *

The main advantage is the gain in more real ground clearance and the possibility of installing larger tires. As a rule, you don't get more travel. Our components are designed in such a way that changes to the chassis geometry result in the least possible wear on drive components. Therefore, extreme elevations are not possible with this method.

*PLEASE NOTE: Since the lift kits vary depending on the different models, we ask you to pay attention to details in the respective item description and, if necessary, to contact us.
