For high pulling requirements
The model achieves a maximum pulling force of 12,000 lb or 5,443 kg on a single line. This value refers to the first line of rope.
Loading...

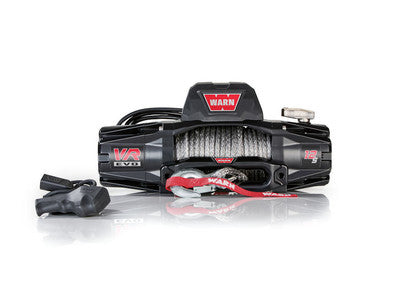

WARN VR EVO 12-S 12V – 5,443 kg winch with synthetic rope
Lieferzeit 5 days
WARN | SKU:
TR818
Regular price
€1.312,22 EUR
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
exkl. MWST für Drittstaaten
✔︎
5,443 kg tractive effort
✔︎
Synthetic rope
✔︎
2-in-1 Wired & Wireless Control
Couldn't load pickup availability
WARN VR EVO 12-S 12V – 5,443 kg winch with synthetic rope
Regular price
€1.312,22 EUR
Unit price
/
Unavailable
WARN · 4x4 & Recovery
WARN VR EVO 12-S – powerful 12-V vehicle winch
The WARN VR EVO 12-S is designed for drivers looking for a powerful 12-V synthetic rope winch for a suitable off-road vehicle. With a maximum rated pulling force of 5,443 kg, it exceeds the VR EVO 10-S; however, the higher pulling force does not replace the need to check the required mounting and vehicle approvals.
5,443 kg pulling forceSynthetic rope12 V DCCable and radio
For what applications is this WARN winch suitable?
The VR EVO 12-S can be particularly interesting for heavier vehicle setups. When choosing, consider the overall weight, mounting position, approved mounting points, battery, and space requirements on the vehicle.
Important features and benefits
Synthetic rope and rope window
The S version is supplied with approximately 27.4 m of synthetic rope and a matching hawse rope window.
Control and installation
The equipment includes a 2-in-1 remote control for cable and radio operation, an Albright circuit, and a three-speed gearbox.
View technical data
| Manufacturer | WARN |
|---|---|
| Model | VR EVO 12-S |
| Maximum pulling force | 5,443 kg (12,000 lb), single line, first line of rope |
| Operating voltage | 12 V DC |
| Rope | Synthetic rope, approx. 27.4 m × 9.5 mm |
| Rope window | Hawse rope window for synthetic rope |
| Operation | 2-in-1 remote control, cable and radio |
| Remote control cable | approx. 3.5 m |
| Control unit | Albright contactor |
| Gearbox | 3-speed planetary gearbox, 234:1 |
| Freehub | Yes |
| Protection rating | IP68 (winch) |
| Mounting hole pattern | 254 × 114.3 mm |
Frequently asked questions about WARN VR EVO 12-S – powerful 12-V vehicle winch
What distinguishes the VR EVO 12-S from the VR EVO 10-S?
The 12-S is designed for a maximum pulling force of 5,443 kg, while the 10-S is designed for 4,536 kg. Which one is better suited depends on the vehicle, installation situation, and expected pulling load.
Can I operate the WARN VR EVO 12-S with a radio remote control?
The series features a 2-in-1 remote control with cable and radio operation. Before use, the instructions for the remote control and safety distances must be observed.
Is the VR EVO 12-S suitable for any bumper?
No. The mounting kit and bumper must be suitable for the model, winch, hole pattern, and pulling forces, as well as appropriately approved.
Further information: Manufacturer specifications from WARN and our WARN winches and accessories. The manufacturer's instructions belonging to this model are decisive for assembly, operation, and load.
