Classic steel cable setup
The steel cable, approximately 30 m long and about 8 mm thick, is guided through a roller fairlead. When working with steel cable, suitable protective equipment is particularly important.
Loading...

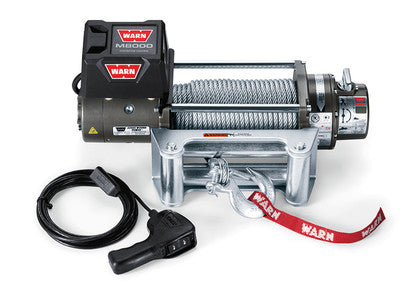

WARN M8000 12V – 3,630 kg Electric Winch with Steel Cable
Lieferzeit 5 days
WARN | SKU:
TR819
Regular price
€1.931,39 EUR
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
exkl. MWST für Drittstaaten
✔︎
3,600 kg of pulling force
✔︎
30 m x 8 mm steel cable
✔︎
3.7 m wired remote control
Couldn't load pickup availability
WARN M8000 12V – 3,630 kg Electric Winch with Steel Cable
Regular price
€1.931,39 EUR
Unit price
/
Unavailable
WARN · 4x4 & Recovery
WARN M8000 – Proven Steel Cable Vehicle Winch
The WARN M8000 (M8) is one of the established 12V vehicle winches with steel cable. It combines a compact design with a maximum pulling force of around 3,630 kg on a single line and is suitable for compatible vehicle and mounting solutions.
3,630 kg pulling force30 m steel cable12V DCRoller fairlead
For what applications is this WARN cable winch suitable?
The M8000 is interesting for users looking for a proven steel cable winch with classic cable remote control. The actual recovery requirements, vehicle weight, electrical supply, and approval of the winch mounting kit are decisive factors for selection.
Important features and benefits
Proven mechanics
The M8000 uses a three-speed planetary gearbox and a freehub clutch for manual cable pulling.
Cable control
Operation is via a cable remote control with a cable length of around 3.7 m. The control box can be positioned separately depending on the installation situation.
View technical data
| Manufacturer | WARN |
|---|---|
| Model | M8000 / M8 |
| Maximum pulling force | approx. 3,630 kg (8,000 lb), single line, first drum layer |
| Operating voltage | 12V DC |
| Cable | Steel cable, approx. 30 m × 8 mm |
| Fairlead | Roller fairlead |
| Operation | Cable remote control, approx. 3.7 m |
| Gearbox | 3-speed planetary gearbox, 216:1 |
| Freehub | Yes |
| Mounting | Check vehicle-specific winch mounting kit and approval |
Frequently asked questions about WARN M8000 – Proven Steel Cable Vehicle Winch
How much pulling force does the WARN M8000 have?
WARN specifies a maximum of 8,000 lb for the M8000 or M8, which is around 3,630 kg on a single line on the first drum layer.
Does the WARN M8000 have a steel cable?
Yes, the version offered here is described with around 30 m of steel cable and a roller fairlead. Pay attention to the suitability for steel cables when choosing accessories.
Can I mount the M8000 without a mounting kit?
Secure mounting requires suitable, load-bearing anchor and mounting points and a mounting kit suitable for the vehicle configuration. Check approvals and instructions before installation.
Further information: Manufacturer specifications from WARN and our WARN cable winches and accessories. The manufacturer's instructions belonging to this model are decisive for assembly, operation, and loading.
