Flexible instead of permanently installed
The Drill Winch is a compact, portable solution for occasional pulling tasks. It is powered by a suitable, standard drill driver – no dedicated electric winch motor is required.
1
of
5
Loading...
WARN Drill Winch 340 kg – Cordless Drill-Powered Rope Winch with Synthetic Rope
Lieferzeit 5 days
WARN | SKU:
TR1078
Regular price
€349,00 EUR
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
exkl. MWST für Drittstaaten
✔︎
easy to operate with the cordless screwdriver
✔︎
up to 340 KG pulling force
✔︎
extremely light at 5.4 kg
Couldn't load pickup availability
WARN Drill Winch 340 kg – Cordless Drill-Powered Rope Winch with Sy...
Regular price
€349,00 EUR
Unit price
/
Unavailable

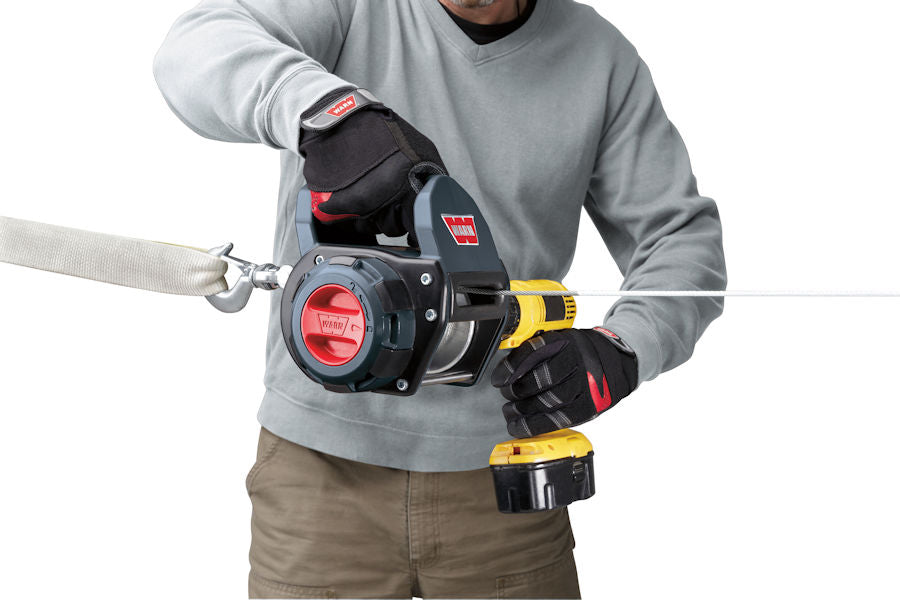

WARN Drill Winch
Portable synthetic rope winch for cordless drills – pulling capacity of up to 340 kg
Whether on the hunting grounds, doing garden work, or loading under controlled conditions: With the WARN Drill Winch with synthetic rope, you can use a standard drill driver as the power source for a portable rope winch. You do not need a winch motor permanently mounted to the vehicle or a separate 12-V connection.
The WARN Drill Winch model offers a rated pulling capacity of up to 340 kg on a single line, approximately 12 m of synthetic rope, and a free-spool clutch for paying out the rope. The drill driver is not included.
Important: This Drill Winch is designed for pulling loads. It is not a hoist and must not be used to lift loads or people.
340 kgmaximum rated pulling capacity
approx. 12 msynthetic rope, approx. 4 mm
Drill driveras an external power source
approx. 5.4 kgown weight according to the manufacturer
What makes the WARN Drill Winch stand out?
340 kg pulling capacity on a single line
WARN specifies a maximum rated pulling capacity of around 340 kg for this 750-lb model. The highest pulling capacity is available when the drum is lightly loaded with rope; it decreases with additional layers of rope.
Synthetic rope and free-spool clutch
The approximately 12 m synthetic rope can be paid out via the free-spool clutch when the winch is unloaded. An integrated rope guide supports the intended rope path.
Hooks at both ends
The winch features a rope hook and an anchor hook for attaching it to suitable rigging and load points. Suitable additional rigging equipment is required separately depending on the task.
Typical applications for the cordless drill rope winch
The WARN Drill Winch is designed for controlled pulling tasks, such as moving suitable objects in the garden or workshop, pulling game on the hunting grounds, or pulling rolling loads onto a trailer. Light pulling tasks related to forestry and property work are also among the applications mentioned by the manufacturer.
However, it is not a substitute for a large vehicle recovery winch. Whether a pulling task is possible depends not only on the rated pulling capacity but also on friction, the ground surface, rigging points, rope load, and the information in the WARN operating instructions.
Show technical data
| Manufacturer / Model | WARN · Drill Winch with synthetic rope |
|---|---|
| Maximum rated pulling capacity | 750 lb / approx. 340 kg on a single line |
| Power source | Standard drill driver (not an impact wrench), not included |
| Connection shaft | 5/16 inch according to the WARN operating instructions |
| Drill driver torque | At least 4 Nm according to the WARN operating instructions |
| Rope | Synthetic rope, approx. 12 m long, approx. 4 mm diameter |
| Rope guide | Integrated rope window (Hawse Fairlead) |
| Free-spool clutch | Yes – only operate when the rope is unloaded |
| Rigging options | Rope hook and anchor hook |
| Weight | Approx. 5.4 kg (device according to Taubenreuther) |
| Dimensions with hooks folded in | Approx. 280 × 243 × 235 mm (L × W × H) |
| Permitted application | Pulling loads; not for lifting or transporting people |
The rated pulling capacity is not a permitted lifting or vehicle recovery load. Technical specifications refer expressly to the WARN Drill Winch model with synthetic rope; specifications for other Drill Winch variants may differ.
Scope of delivery and required accessories
Included components
- WARN Drill Winch with synthetic rope
- Approx. 12 m of synthetic rope
- Integrated rope window
- Rope hook and anchor hook
Additionally required
- Suitable drill driver with a compatible drill chuck (not included)
- Suitable rigging equipment and personal protective equipment depending on the application
- Secure, sufficiently load-bearing rigging points
Frequently Asked Questions about the WARN Drill Winch
Which cordless drill do I need for the WARN Drill Winch?
The Drill Winch is powered by a standard drill driver, not an impact wrench. According to the WARN instructions, a driving torque of at least 4 Nm is required. The drill chuck must securely and reliably hold the 5/16-inch drive shaft. The drill driver is not included.
Can I lift loads with the WARN Drill Winch?
No. The Drill Winch is a rope winch and expressly not a hoist. WARN prohibits its use as a lifting device as well as the lifting or moving of people. A lifting device approved for this purpose is required for lifting applications.
How much weight can the WARN Drill Winch pull?
The model has a rated pulling capacity of up to 340 kg or 750 lb on a single line. This maximum value applies when the drum is lightly loaded with rope. The available pulling capacity decreases with additional layers of rope wound up; friction and operating conditions must also be considered.
What is included with the WARN Drill Winch with synthetic rope?
The model includes the portable winch housing, approximately 12 m of synthetic rope, an integrated rope guide, and hooks on the rope and anchor side. A cordless drill driver and additional rigging equipment must be provided separately.
Other WARN rope winches and manufacturer information
Are you looking for a different pulling capacity or a permanently mounted vehicle rope winch? Discover our WARN rope winches and accessories. For technical details on this model, you can find the WARN manufacturer information for the Drill Winch.
