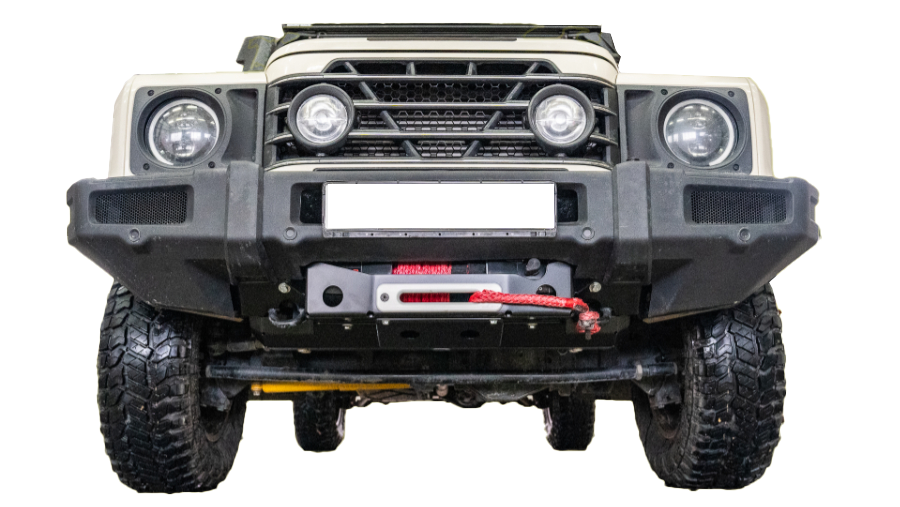

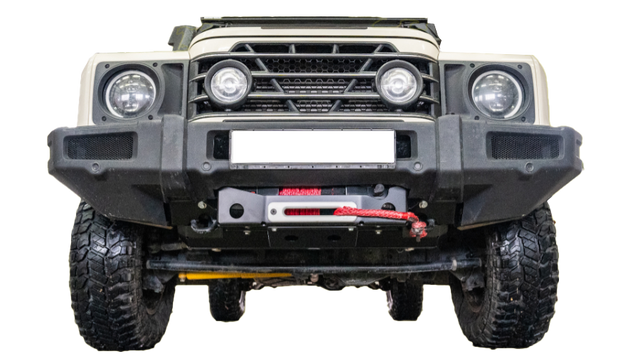

Cable winch mounting kit for Ineos Grenadier with WARN Zeon 10

Expand the application possibilities of your INEOS Grenadier with the specially developed WARN cable winch attachment kit including the powerful WARN Zeon 10 cable winch. Exclusively available at Overlandingshop.de, this attachment kit offers the perfect solution for demanding off-road adventures and rescue operations.

Product features:

• Tailor-made fit: This kit has been specifically designed for the INEOS Grenadier and ensures a perfect fit and easy installation.
• High-quality construction: Made from robust materials, the attachment kit ensures durability and stability, even under extreme conditions.
• Powerful WARN Zeon 10: The WARN Zeon 10 winch included in the set offers an impressive pulling force of 4,536 kg (10,000 lbs) and is known for its reliability and efficiency.
• Versatility and Safety: Ideal for off-road enthusiasts and professional applications, this kit offers the safety and versatility you need.
• Easy installation: The mounting kit comes with detailed installation instructions that enable uncomplicated assembly.

Scope of delivery:

• WARN winch attachment kit for the INEOS Grenadier
• WARN Zeon 10 winch
• Comprehensive installation instructions
• All necessary fastening elements

Mounting kit

• Type: 16-100100
• Coating: KTL/powder
• Colour: RAL9005 black satin
• Roller fairlead cover: Not necessary
• Screw set included: Yes
• TÜV parts certificate: Yes

Cable winch

• Model: WARNZEON10
• Voltage: 12 volts
• Traction force: 4,536 kg
• Control: Contactor
• Radio remote control: No
• Wired remote control: Yes, 3.7 m
• Gearbox: 3-stage planetary gear
• Translation: 216:1
• Brake: Automatic
• Drum dimensions: 8 x 22.9 cm
• Weight: 44kg
• Rope material: plastic
• Rope length: 27 mx 9.4 mm
• Battery cable: 1.83 m
• Rope freewheel: Manual
• Cable window: Aluminium cable window
• Min. cold cranking current battery: 650 CCA
• Tow hook: Yes
• Fixing screws: Yes
• Dimensions (LxDxH): 615.9 x 181.6 x 267.1 mm
• Hole pattern: 254 x 114.3 mm
