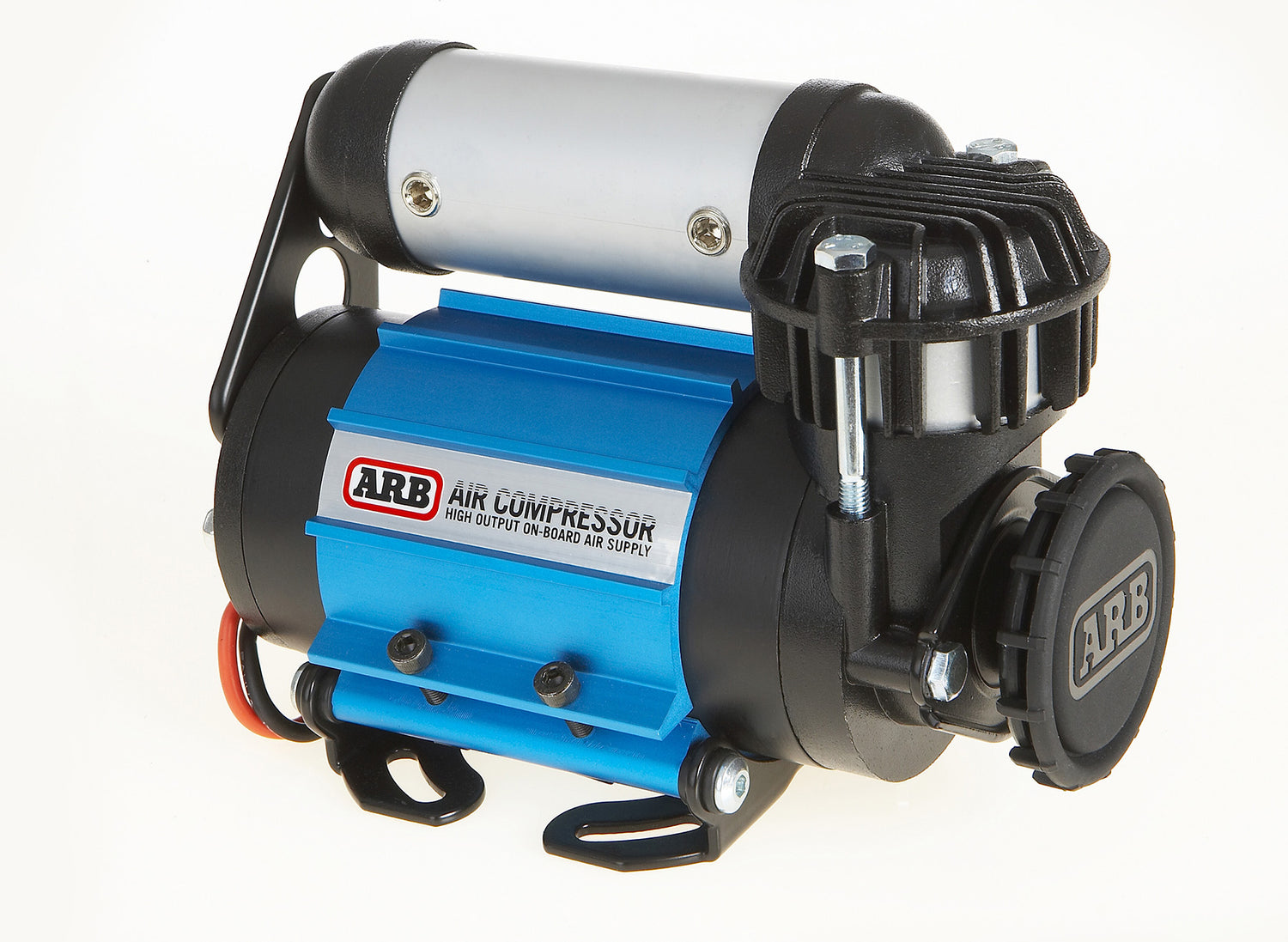

ARB compressor CKMA12

Name: ARB compressor CKMA12
Brand: ARB
SKU: 10265
Price: 389.90 EUR
Availability: InStock

Lieferzeit 3 days

ARB | SKU: 10265

€389,90 EUR

Tax included Shipping calculated at checkout.

exkl. MWST für Drittstaaten

✔︎ With 14.2 amps of power consumption and an air flow of 87.2 LPM at 0 bar (3.08 CFM at 0 PSI), it delivers impressive performance.

✔︎ compact dimensions 142mm x 190mm x 96mm

✔︎ compatible with the ARB AIR Locker solenoid valve

ARB · CKMA12

12-V Onboard Compressor for Tires and Air Lockers

The ARB CKMA12 is designed for permanent vehicle installation. It delivers sufficient airflow for tire inflation and can simultaneously supply compressed air to up to two ARB Air Lockers.

87.2 l/min at 0 bar

High free-air flow with a current draw of 14.2 A.

65.9 l/min at 2 bar

Under backpressure, the current draw is approximately 25.2 A according to Taubenreuther.

For up to 2 Air Lockers

Wiring harness and pressure switch for integration into an ARB locking system are included.

50% duty cycle

At 22°C: 30 minutes of operation, followed by a 30-minute break.

142 × 190 × 96 mm

Compact installation dimensions with a stated weight of approximately 4.5 kg.

Protected design

Air filter, pressure switch, and thermal overload protection support reliable operation.

Tire inflation hose sold separately

A suitable ARB tire inflation hose is additionally required for inflating tires. Electrically protect the compressor correctly and mount it in a suitable, ventilated installation location.
