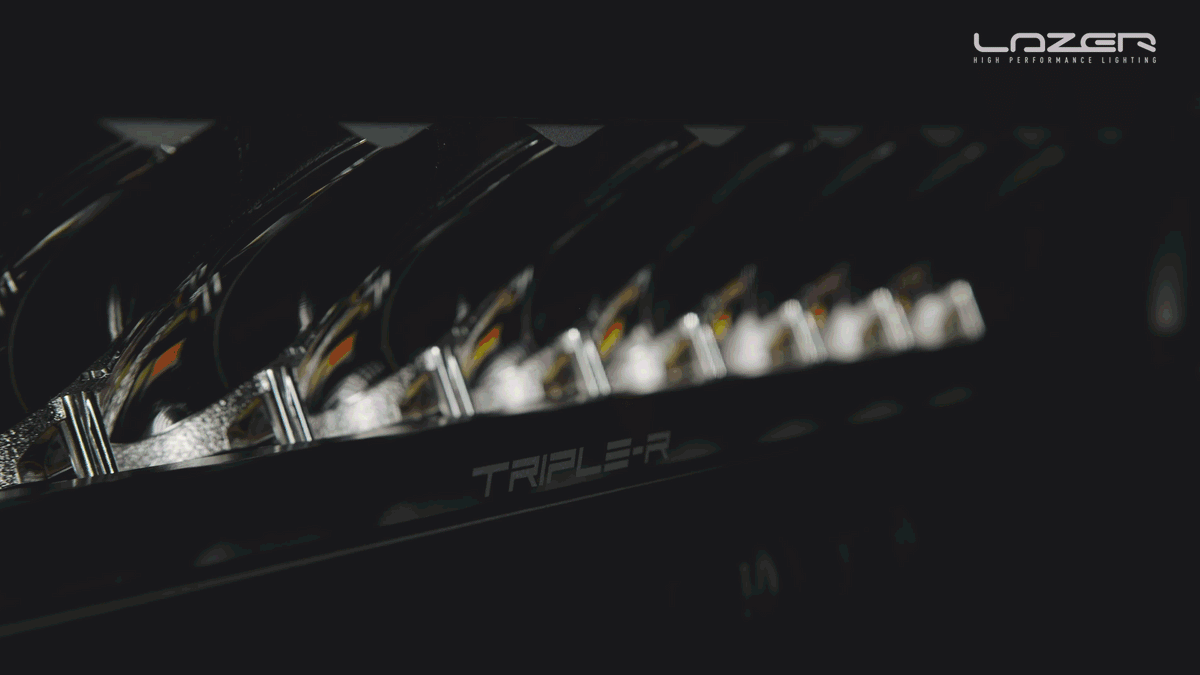

Lazerlamps TRIPLE-R 24 ELITE+

The Elite+ series represents an evolution of our high-performance LED lighting solutions, comprising products with improved performance parameters, light distribution and functionality. These improvements result, among other things, from the integration of additional yellow LEDs in each light. These can either be combined with the existing white light high beam function to provide improved nighttime visibility with a softer, more relaxed color temperature. The yellow LEDs can also be operated independently to direct the light specifically downwards and to the side of the road or path, which is particularly advantageous in snow, fog or dust.

The lights are equipped with a switch that allows you to switch between different lighting modes. These modes include Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only) and E-Mark (white only; road legal with reduced power according to UNECE Reg 149). A memory function ensures that the previously selected mode is retained, for example after the vehicle is restarted. By long pressing the switch for 2 seconds, the lamp will immediately switch to E-license plate mode.

The performance of the Triple-R 24 Elite+ is achieved through an advanced electronic design that includes a combination of 48 white and 40 yellow LEDs. In boost mode, the white LEDs produce 24,056 raw lumens. In combo mode, the white and yellow LEDs produce a combined 34,220 raw lumens, which means impressive light output for night driving. Total power consumption is 340W, with a current consumption of 26.1 Amps (at 14V). To aid operation and installation, the lamp has a 2-pin heavy-duty Aptiv and 3-pin Superseal connector. Corresponding vehicle-side wiring sets are included in the scope of delivery. The Aptiv connector is responsible for high beam operation, while the Superseal connectors allow function selection as well as white and yellow position light/tail light selection.

Lazer's Elite+ models have been designed, engineered and manufactured to British standards of performance, reliability and design. The modern design of the lamp is particularly evident up close, while the actual advantages come into their own when used at night. With a comprehensive 5-year warranty and lifetime lens warranty, durability and reliability are assured even in demanding environments.

Main features:

• Combination of high efficiency white (5000k) and PC yellow LEDs.
• Yellow LEDs are optimized for use in snow, fog and dust.
• Integrated white and yellow position light function.
• White light ECE tested to Reg 149 (Class B, high beam) for use on the road (E-Boost technology) and Reg 148 position/side light function (white only).
• With pre-wired 2-pin Aptiv and 3-pin Superseal connectors (male/female).
• Comes with a one-lamp wiring kit.
• The momentary switch makes it easy to switch lighting modes.
• The memory function recalls the preferred lighting mode without having to reselect it every time you ride.
• Includes 'Center Mount' and side mount kit.
• CAE optimized heatsink offers improved thermal dynamics.
• Automotive grade anodized pre-treatment and powder coating for ultimate corrosion and chemical protection.
• Electronic thermal management system optimizes light output to ensure LED longevity.
• "Unbreakable" and hard-coated polycarbonate lens.
• IP68 waterproof.
• 5 year guarantee.
• Designed and manufactured in the UK.

These LED headlights are approved in Europe as additional lighting according to E9-E11 UNECE 112!!!
