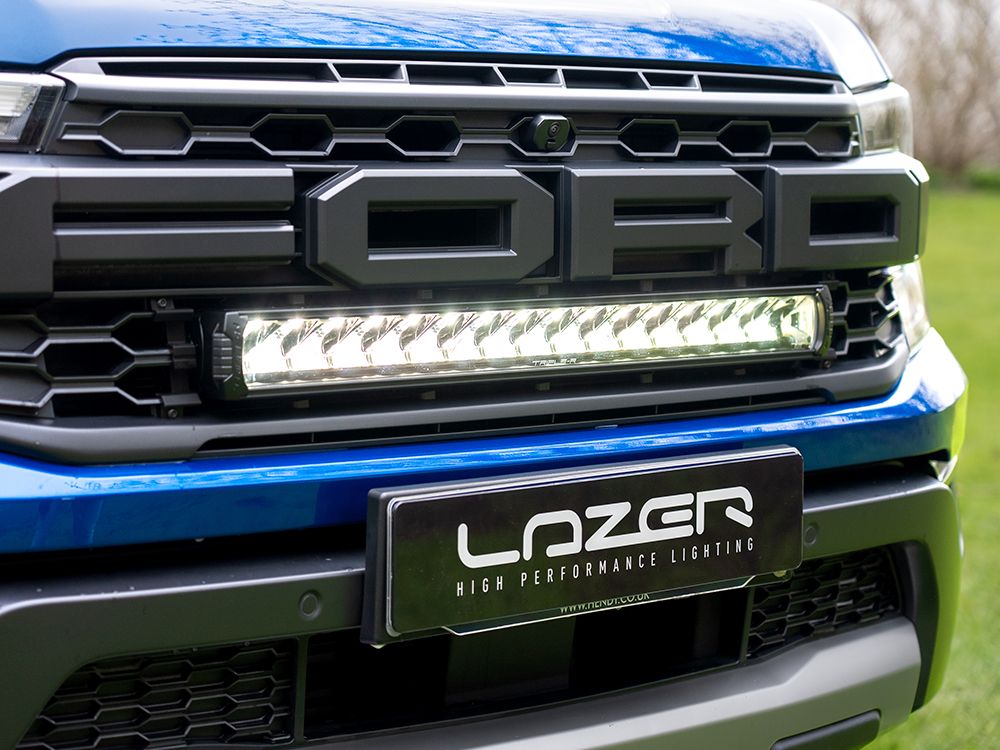

Lazerlamps grille Ford Ranger Raptor LED complete package
Couldn't load pickup availability
Payment Methods
Your payment information is processed securely. We do not store any credit card details and do not have access to your credit card information.
Product Information
The Lazer grille installation kits offer tailor-made brackets for easy and quick installation of high-performance LED light bars into the original grille of the most popular cars, vans and light commercial vehicles. The design integrates seamlessly with the existing vehicle appearance. The result is a robust, theft-proof lighting system that offers additional protection.
Each kit includes a set of auxiliary LED driving lamps approved according to UNECE Regulation 112 (Class B). Different lighting options are available for different vehicle makes and models. The kit includes precision-machined brackets tailored to your vehicle, grille cut guides for a perfect fit and a matching wiring harness that allows for easy electrical installation. A separate isolator switch is available as an option.
The kits are easy to install without having to remove the grille. The brackets are made of UV-stable automotive-grade composite material that is 3D printed and ensures a stable, aerodynamic installation. In addition, self-tapping, anti-theft screws are included in most cases for additional protection.
Our kits are designed and manufactured in the UK. We place the highest priority on performance and quality, so you get the best lighting solution for your vehicle, backed by our 5 year guarantee. This guarantee only applies to grille mounts used with Lazer Lamps.
1x Triple R 16 Elite |
|
Voltage range (DC) | 10-32V |
LED lifespan | 50,000 hrs |
Weight | 3.2kg |
HIGH BEAM FUNCTION | |
Total luminous flux |
18040 lm |
Total luminous flux in driver FOV † | 11888 lm |
Color temperature | 5000k |
Number of high-performance LEDs | 16 |
Power consumption | 208 Watts |
Current consumption (14.4 V) | 14.4 Amps |
CERTIFICATION | |
High beam | N/A |
E-Mark Ref | N/A |
LIGHTING DATA | |
Horizontal beam angle | 30 Deg |
0.25 lux line | 1920 metres |
0.5 lux line | 1358 metres |
1-Lux line | 960 metres |
3-Lux line | 554 metres |
